Stress Shot Peening Machine

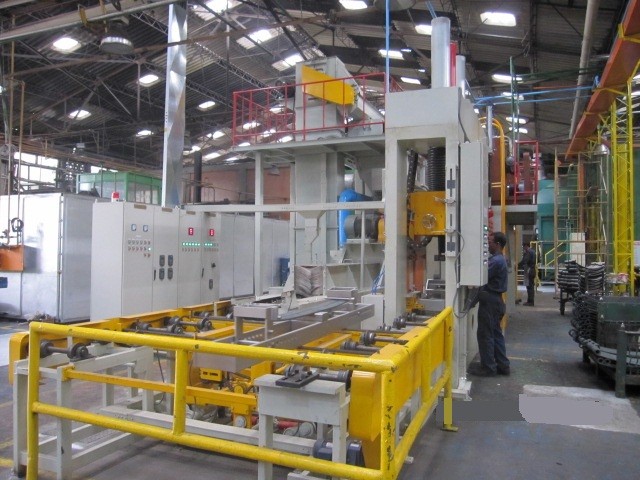

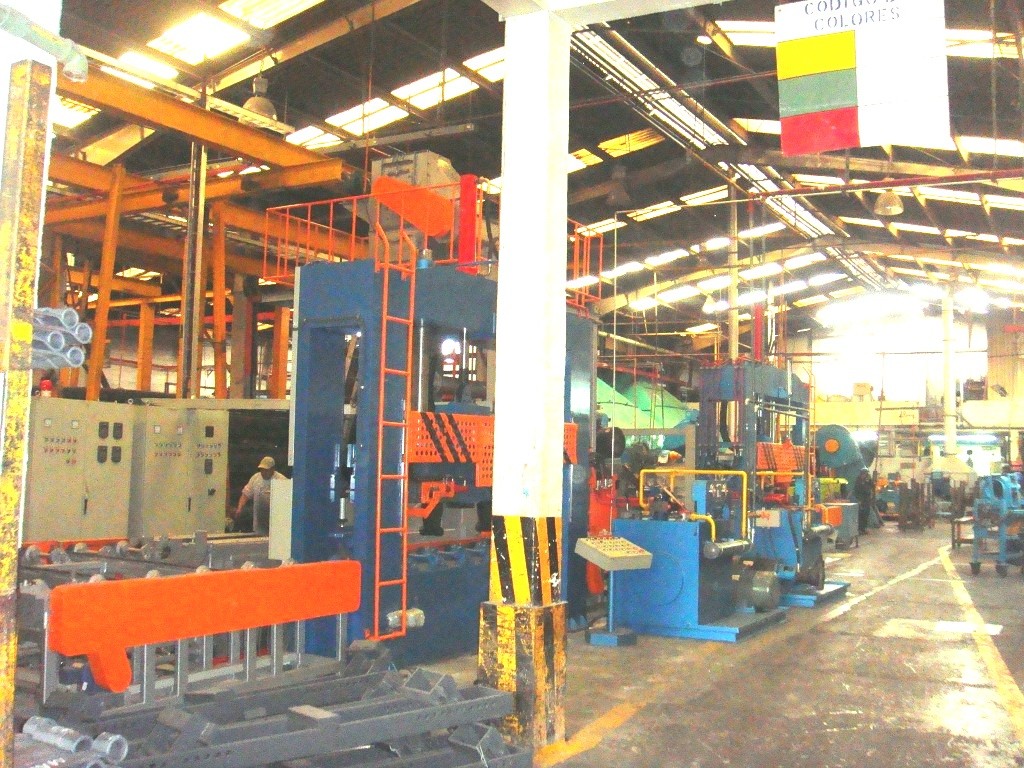

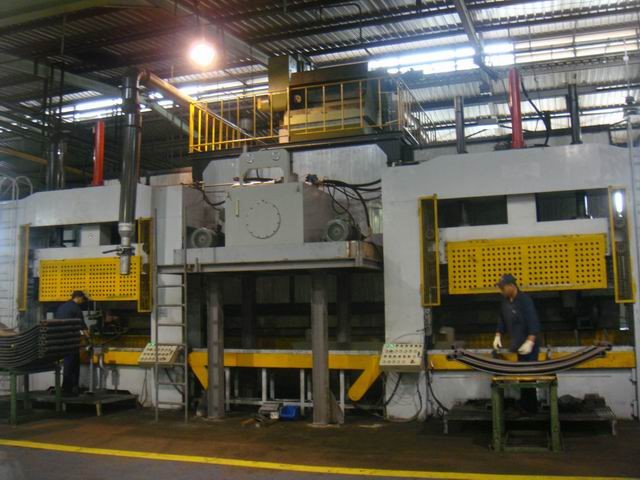

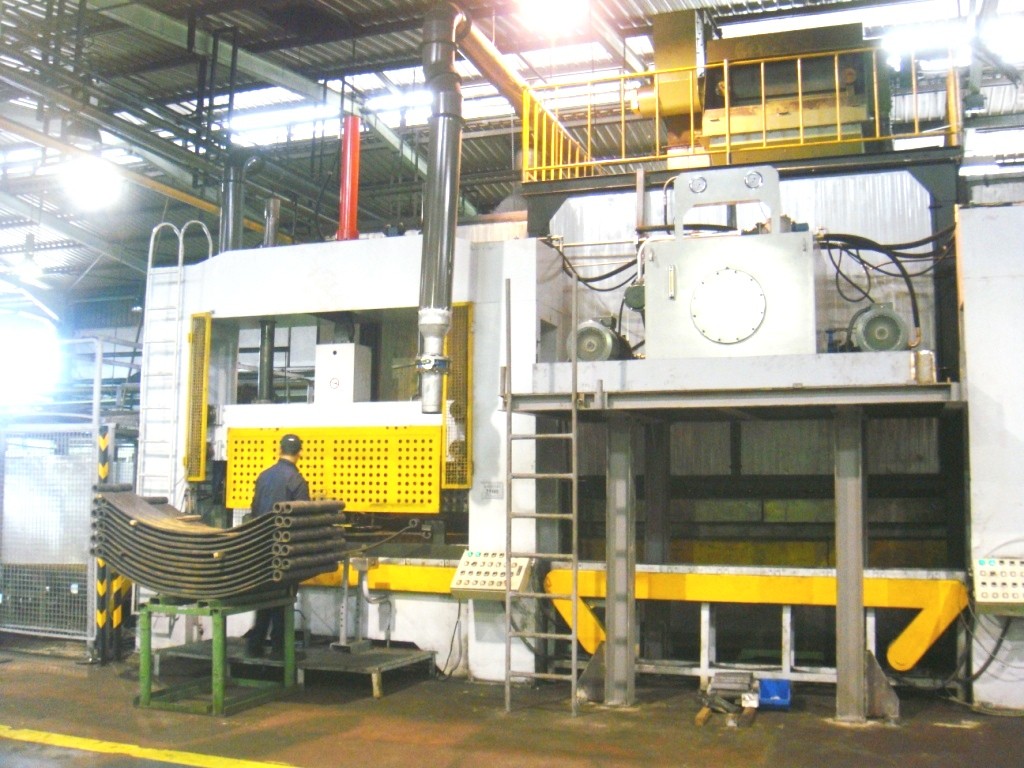

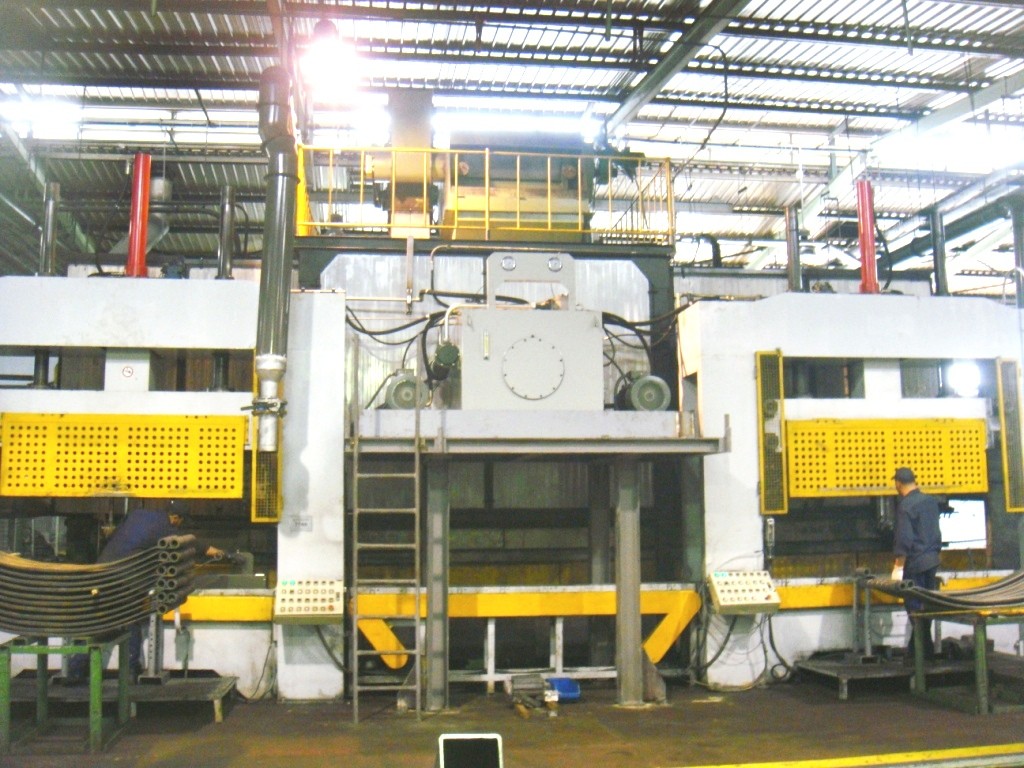

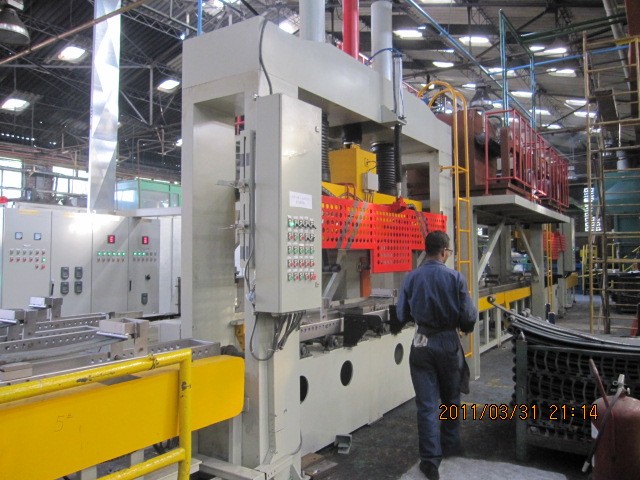

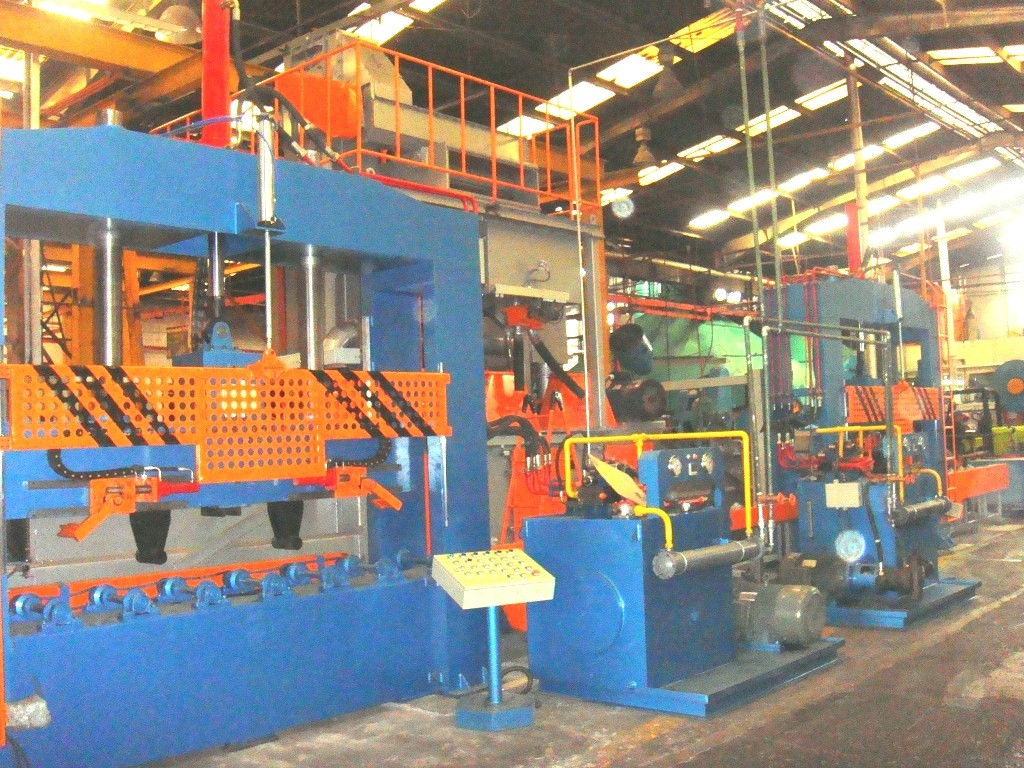

The standard Stress shot peening line consists of 1. Shot Peening main machine with 3 impellers ( 2 or 4 impellers up to user’s choice). 2. Presses and convey system A. 20 Ton hydraulic loading press (15 Ton or 30 Ton available) B. Charging conveyer C. Discharging conveyer D. 20 Ton hydraulic unloading press (15 Ton or 30 Ton available) E. Conveyer between charging and discharging device 3. Jigs (Cranes) are with normal leaf spring steel ( or with Mn13 steel with extra cost ) 4. Dust collector
Details
Main Technical Data for the main shot peening machine
|
1
|
Dimension of the line
|
around18m(L)×8m(W)×5.5m(H) and1.5m underground ( dimension does not include dust collector which will be located outside of the plant)
|
|
2
|
Number of impellers
|
3 impellers ( type: SPENCE, 180-5RA or others)
|
|
3
|
Shot size
|
S390 Standard diameter 1.0 mm Screen # 18 SAE-J444
|
|
4
|
Intensity (with stress)
|
Almen C = 0,008” +/- 0,002” (Speed≤4m/min)
|
|
5
|
Coverage on up side
|
≥98%
|
|
6
|
Width of conveyer
|
240~260mm
|
|
7
|
Type of conveyer inside tunnel
|
chain covered with plate+ chain style
|
|
8
|
Speed of conveyer
|
1~6m/Min (adjustable)
|
|
9
|
Total Motor Power
|
around150kw
|
|
10
|
Move leaf to loading press
|
By manual
|
|
11
|
Move leaf from unloading press
|
By manual
|
|
12
|
Loading press to fix the leaf on jig (stress on)
|
automatically
|
|
13
|
Unloading press to release the leaf from jig (stress off)
|
automatically
|
|
14
|
Jigs move between stations
|
automatically
|
|
15
|
Max. cylinder stroke of the press
|
700mm
|
|
16
|
Length of the jig
|
2400 mm
|
|
17
|
The tact timing is less than 35seconds. (That mean in every 35 seconds, there is one jig passes the same position. As the worker manually loading spring into jig is in the cycle, so it is also related with the worker’s loading speed).
|
|
|
18
|
For the leaf width less than 90mm, two leaves could be put in same jig. For the leaf width more than 90mm, one leaf could be put in the same jig.
|
|
