Hydraulic Fatigue Testing Machine

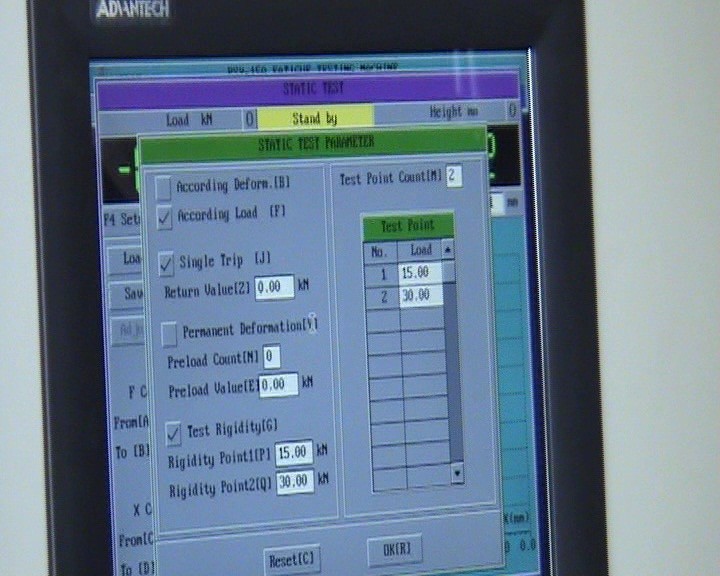

Fatigue Testing Machine (PSY Series Universal Dynamic Performance Testing Machine) Both static and dynamic testing could be done in same machine. Testing data and curve could be printed and saved in the computer.
Details
Main parameter for fatigue testing machine
|
Rated static load |
150KN |
|
Rated dynamic load |
100KN |
|
Rated amplitude |
±100mm |
|
Frequency |
0.1--2Hz |
|
Test space: Max. Height |
1000mm |
|
Test space: Max. Width |
500mm |
|
Working table size |
2400×1080mm(L×W) |
|
Stroke of electric-hydraulic actuator |
250mm |
|
Motor Power |
115Kw |
|
Test accuracy A. Altitude test, the deviation B. Load test, the deviation |
≤0.5% ≤1% |
