Pre-set and Loading Testing Machine
We could supply 4 different types of testing machine: ZF50, ZF100, ZF 200 and ZF300, the respective Max. load is : 5kN, 10kN, 20kN and 30 kN. This machine could be used separately or equipped on assembly line.
Details
Main parameter for ZF-200 ( Max. load 200 kN):
|
Load
Maximum Load
Sensor available
|
200Kn
( 50kN, 100kN and 200kN )
|
|
|
Span and deflection
Maximum Span
|
2200 mm
|
|
|
Maximum deflection
|
650mm (Standard is 550 above zero and 100 minus zero, total cylinder length 700mm)
|
|
|
Possibility to select the type of fashion of control
|
Two pre setting and one testing ( P2T)
One pre setting and one testing (P1T)
Only testing (T1)
Only pre-setting (P1)
More testing model is on option, need special programming.
|
|
|
Complete cycle for the control of the spring
|
< 45 second
|
|
|
Parameter setting on PC and real time status showing on PC
Testing result ( 5 grade): “ --, -, 0, +, ++ ”will be showed on top of machine
|
||
|
Number working jigs: (including V-block)
|
02 jigs.
|
|
|

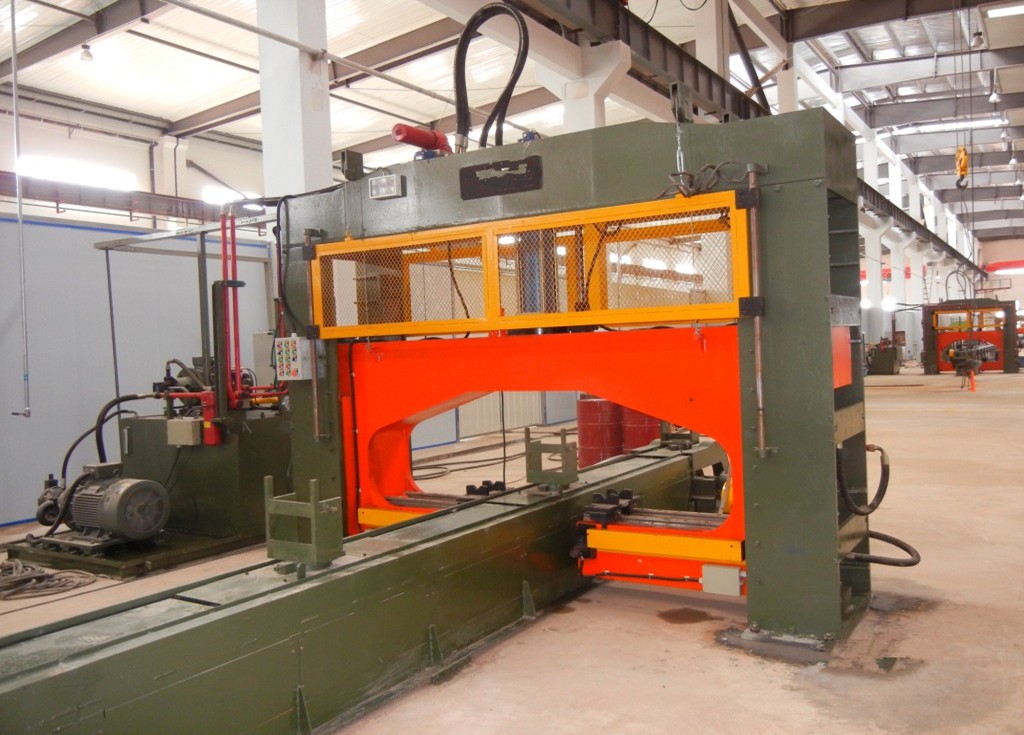

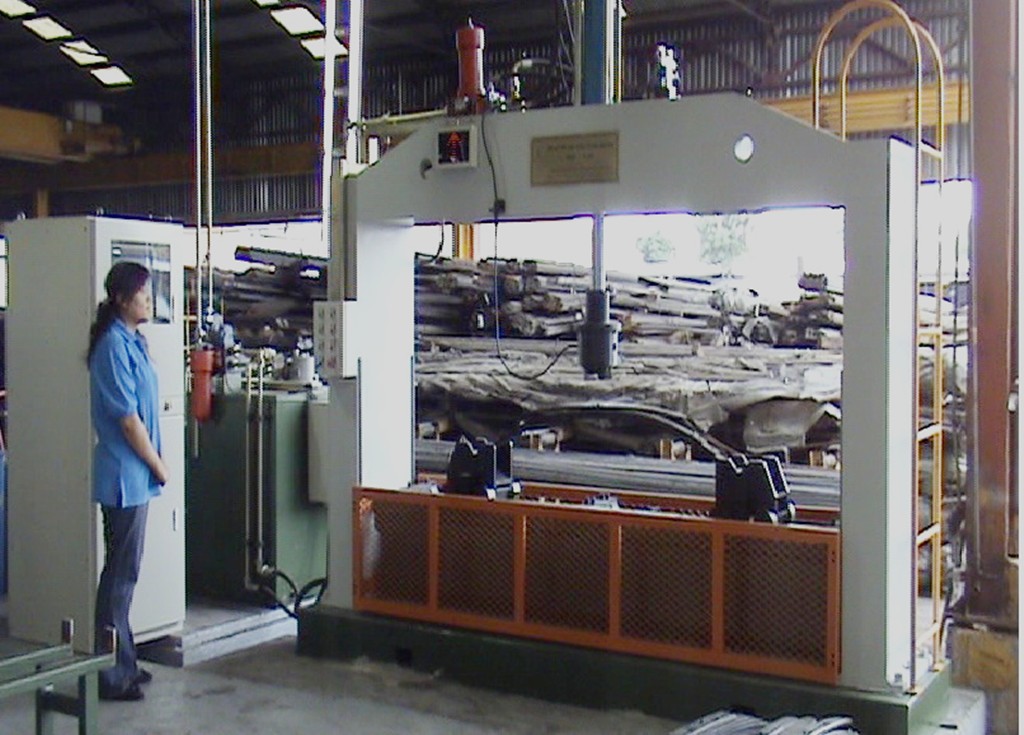

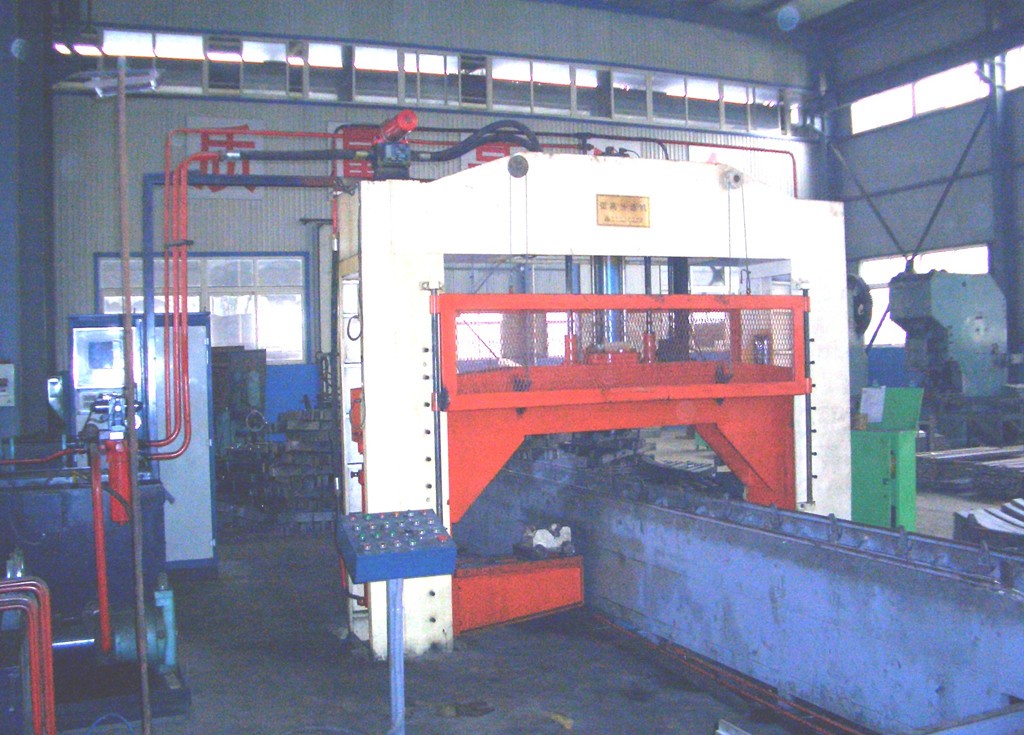

Protecting device in use, orange one in the photo
|
||
