Automatic Eye Forming Machine

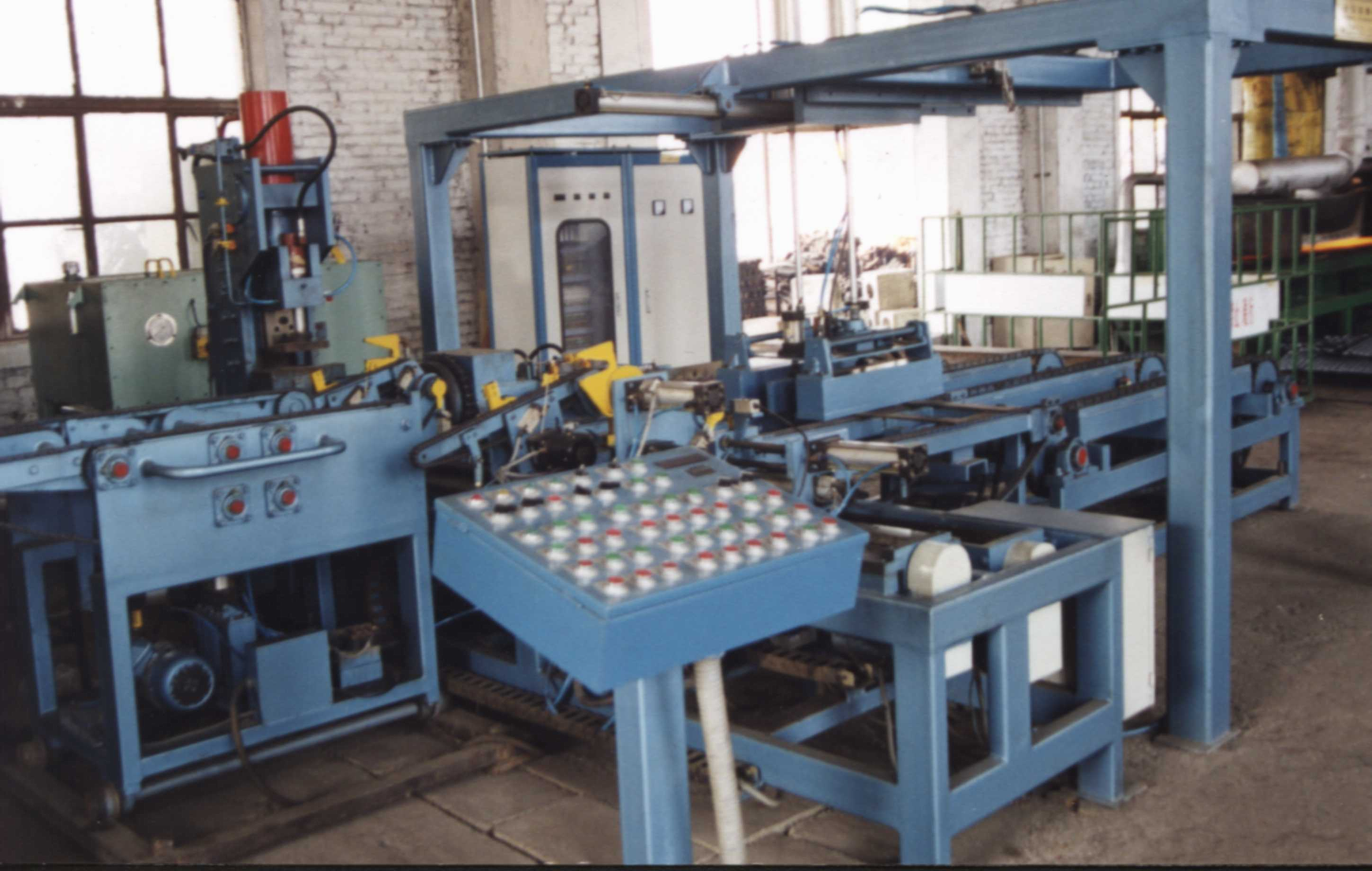

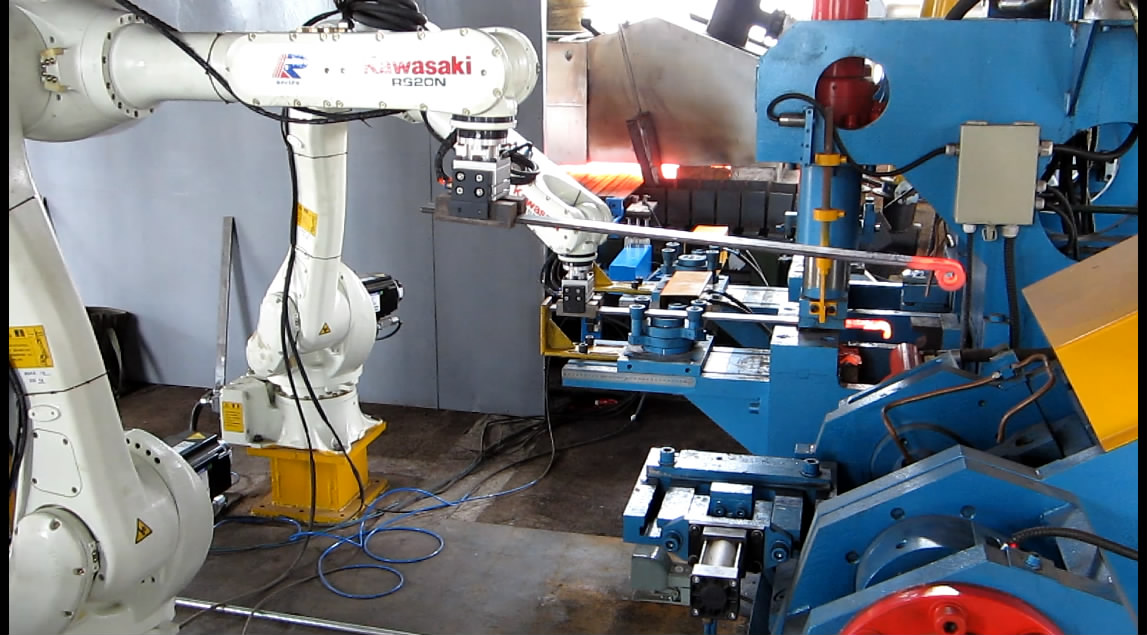

The automatic eye forming machine consists of 6 parts for your option. Furnace Loader, heated leaves un loader from furnace, edge side trimmer, end cutter, eye former, stacker along with the matching convey system. Main advantages: A/ Digital control & display: B/ Highly automation This automatic line could be equipped with robot or manipulator to reallize the automation.
Details
Main parameters for eye forming machine
|
|
ER-1
|
|
Max. thickness of leaf
|
25mm
|
|
Max width of leaf
|
120mm
|
|
Min inner diameter of eye
|
20mm
|
|
Max inner diameter of eye
|
Φ70mm (Wrapper: Φ95mm)
|
|
Center distance between eyes
|
940-2000mm
|
|
Parallelism of eyes
|
≤1%
|
|
Perpendicularity of eye
|
≤1%
|
|
Allowance of inner diameter of eye
|
＜0.3mm
|
|
Productivity
|
＞4 eyes/min
|
|
Automatic
|
Fully
|

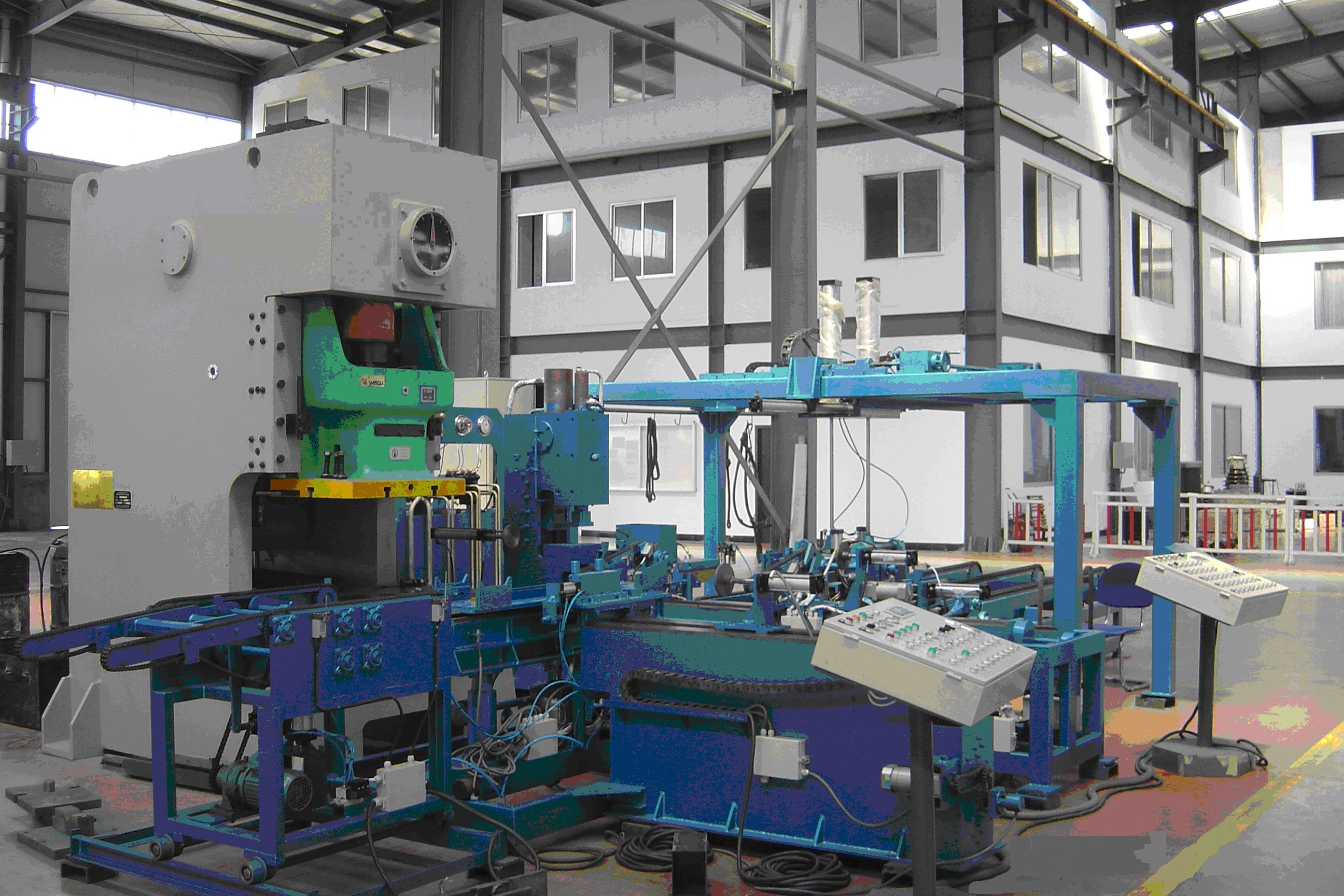

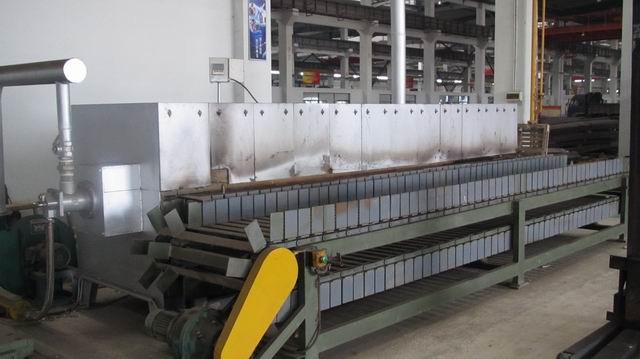

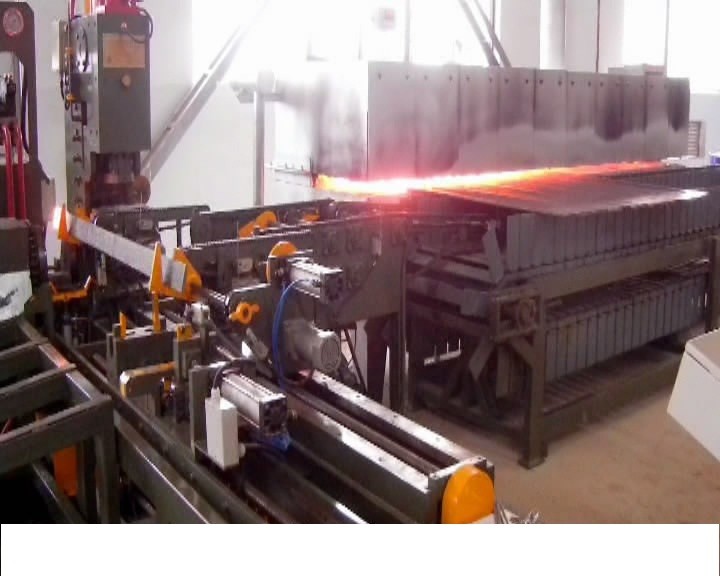

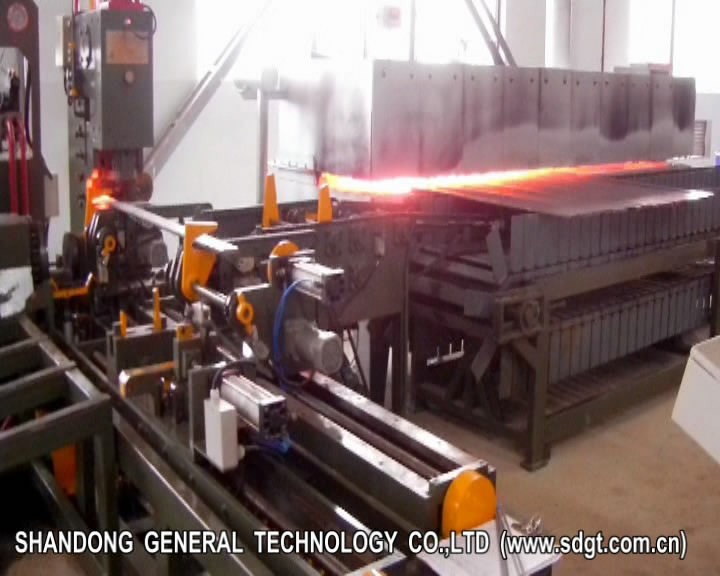

Main parameter for furnace (could be customized):
|
1
|
Chamber size (mm)
|
5000 ×350 ×300mm (L×W×H)
|
|
2
|
Contour size (mm)
|
5440 ×1070 ×1410mm (L×W×H)
|
|
3
|
Conveyer size (mm)
|
6000x1000x850(L×W×H)
|
|
4
|
Conveyer inside the furnace with material of Stainless steel (Cr25Ni20)
Other parts of conveyer are with normal leaf spring steel.
|
|
|
5
|
Convey direction
|
operate from left to right
|
|
6
|
Fuel
|
Natural gas or LPG
|
|
7
|
Working temperature
|
≤1100℃
|
|
8
|
Accuracy of temperature
|
±10℃, automatic temperature control.
|
|
9
|
Efficiency
|
two burners ≤ 7.5 Sec/end (two burners) for heating section of 15T×90W×150Lmm
|
