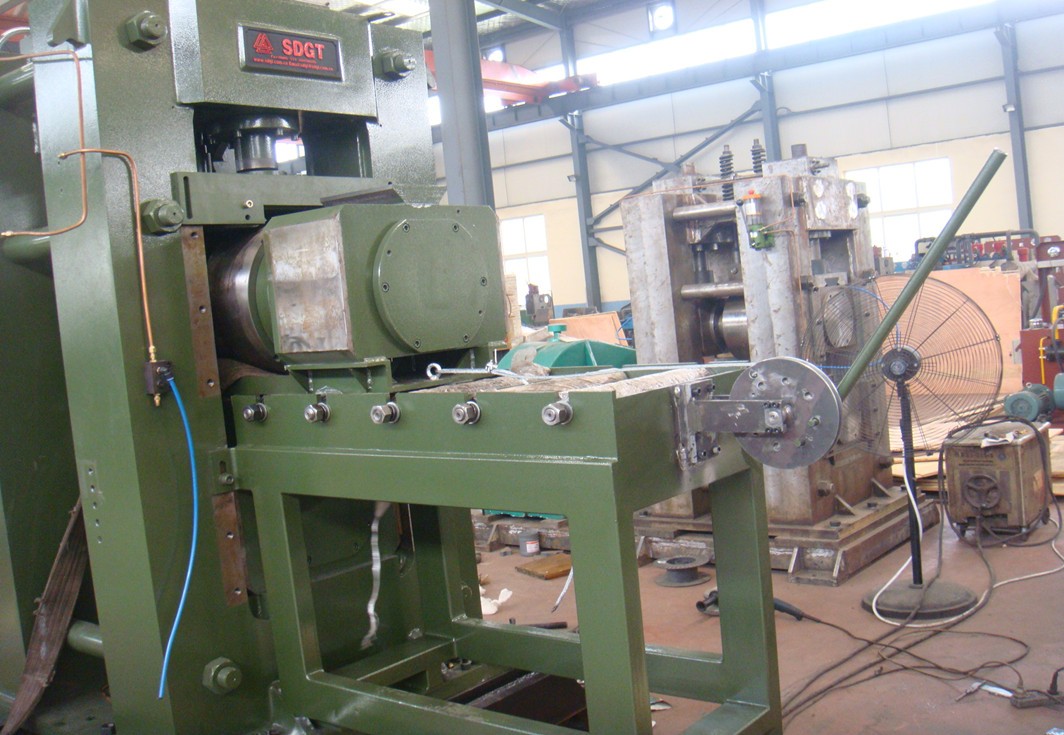

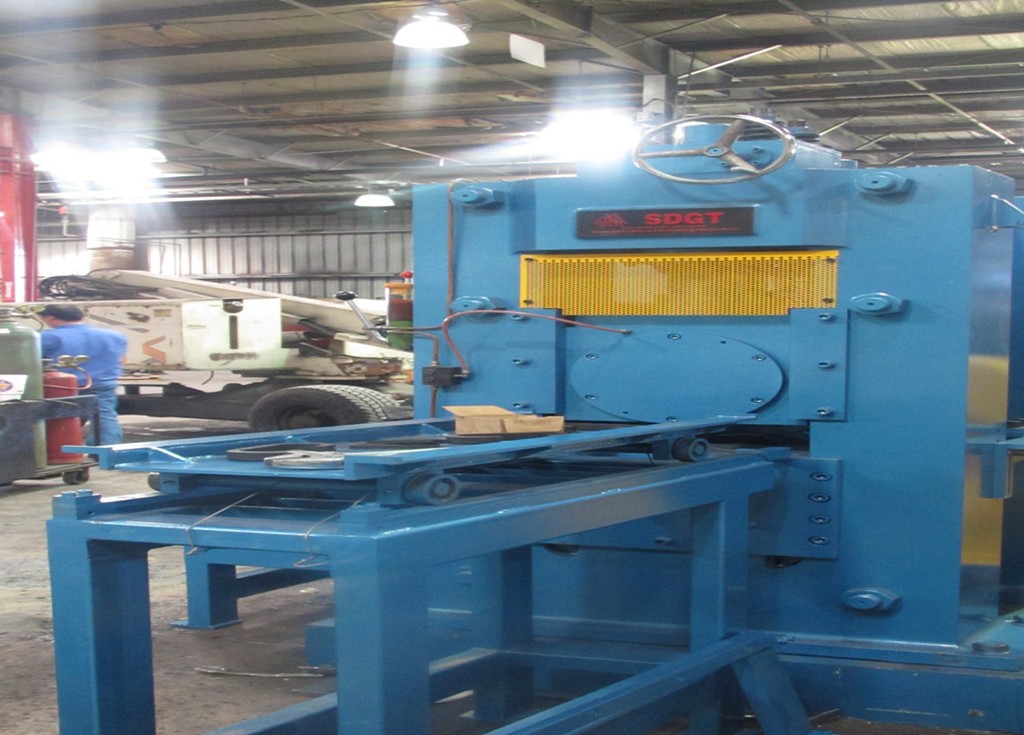

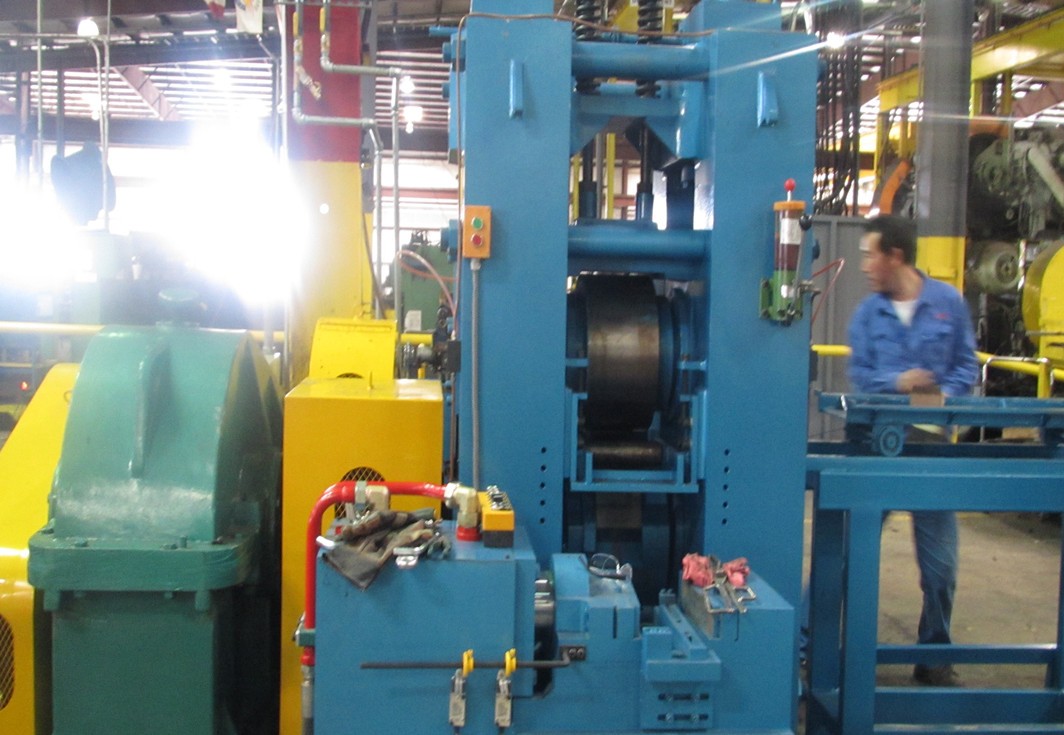

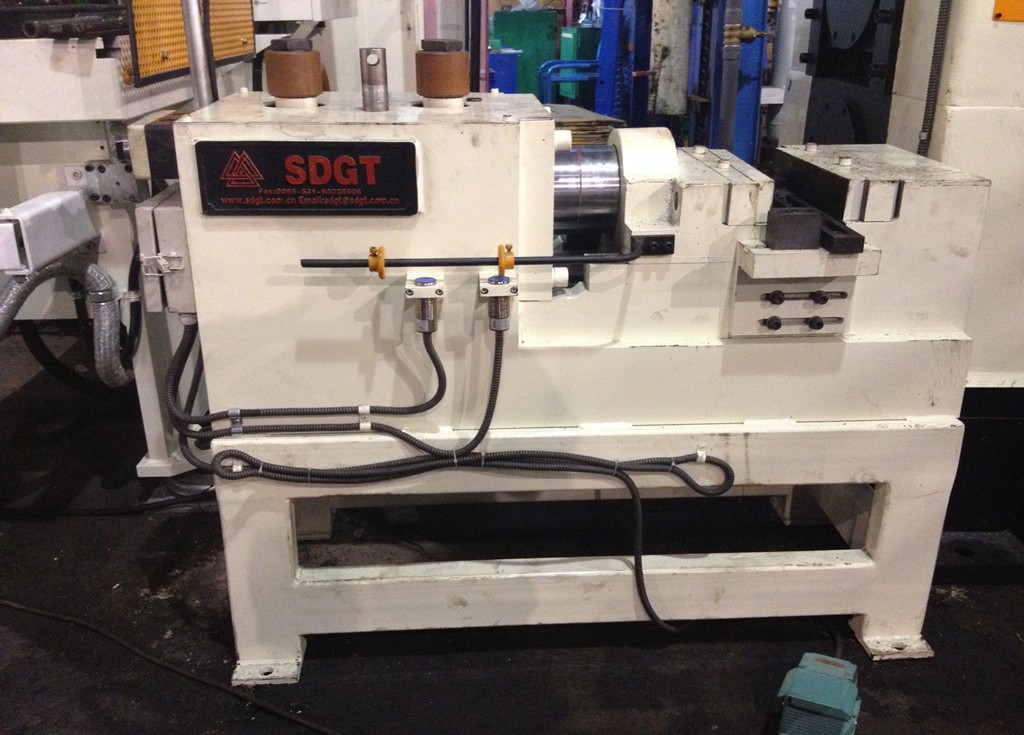

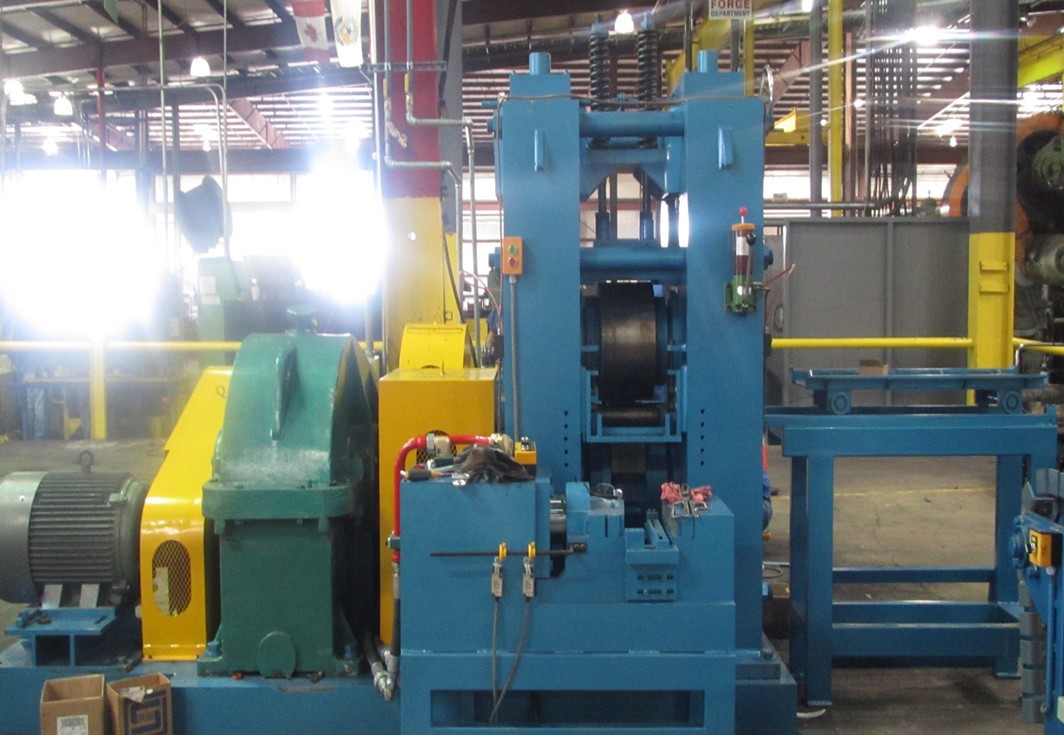

  • Short Taper Rolling Machine

Short taper rolling machine is used for taper on length less than 300mm,which has theadvantage of high efficiency and easy operation and maintenance.

Details

 Main parameters for main machine (160Ton also available)

1
Max. Rolling Force
2000kN
2
Thickness before rolling
5-45mm
3
Rolling Length
≤300mm
4
Min. Thickness after rolling
4mm
5
Rolling Slope Range
0.0125-0.25
6
Main Roller speed
20rpm
7
Rolling thickness tolerance
±0.20mm
8
Working height
850mm
9
Reduce motor to be arranged at left or right side of rolling machine

 Main parameter for hydraulic squeeze device (on option)

1
Squeezing mode
Hydraulic
2
Squeezing capacity
100Ton
3
Squeezing slope
0-10
4
Squeezing clamp length
200mm

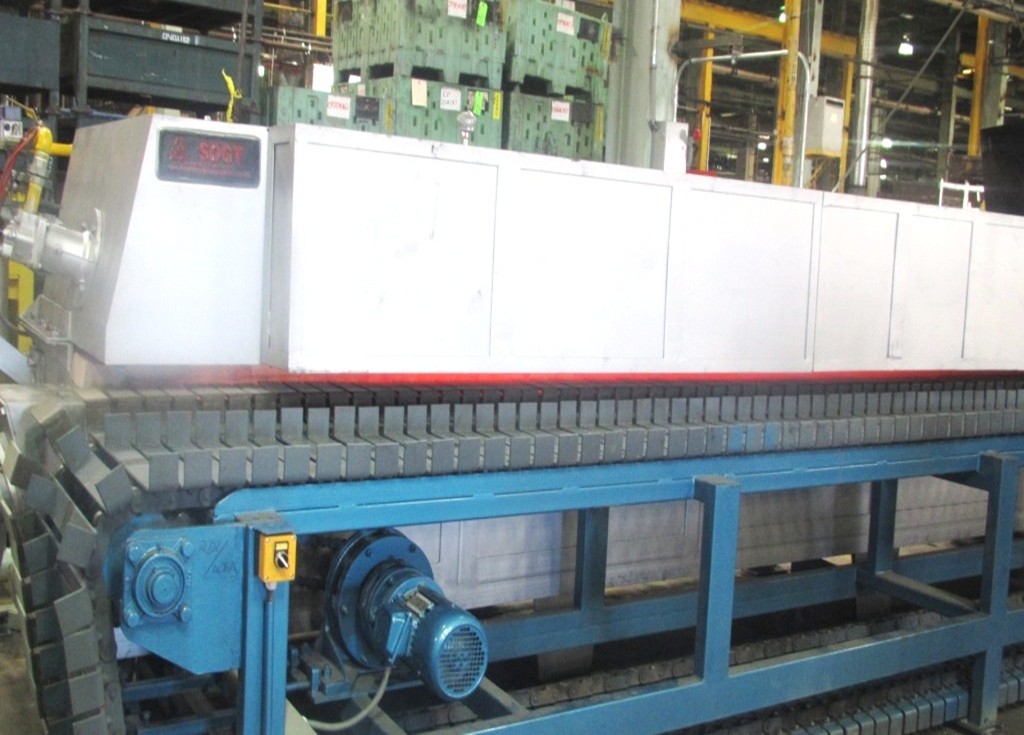

Main parameters   ( could be customized)  for short taper rolling machine



1
Chamber size (mm):
5000 ×350 ×300mm (L×W×H)
2
Contour size (mm)
5440 ×1070 ×1410mm (L×W×H)
3
Conveyer size (mm):
6000x1000x850(L×W×H)
4
Convey direction
operate from left to right
5
Fuel:
Natural gas or LPG
6
Working temperature:
≤1100℃
7

Conveyer inside the furnace with material of Stainless steel (Cr25Ni20)
Other parts of conveyer are with normal leaf spring steel.
8
Accuracy of temperature ±10℃, automatic temperature control.
9
Efficiency:
two burners
≤ 7.5 Sec/end (two burners) for heating section of 15T×90W×150Lmm
