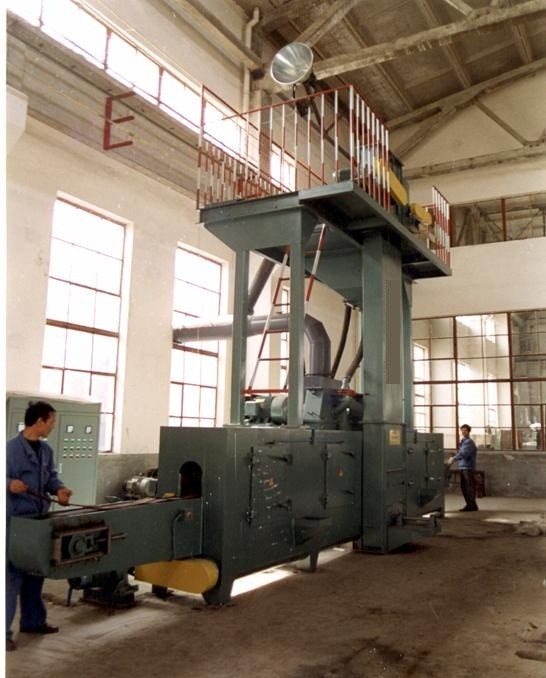

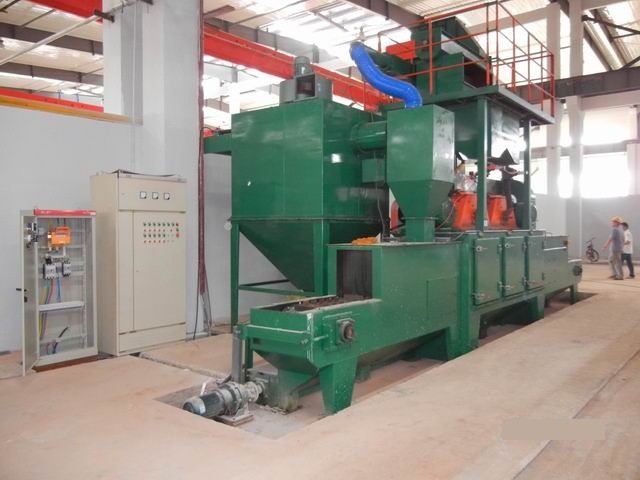

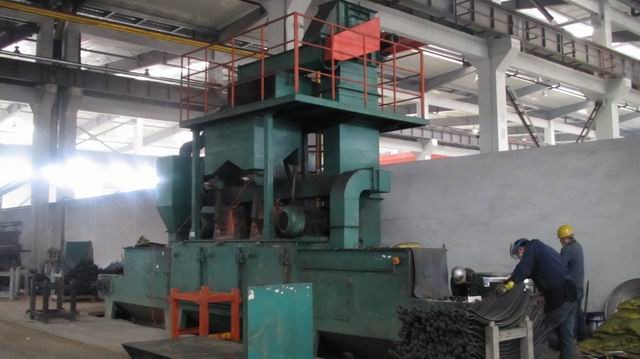

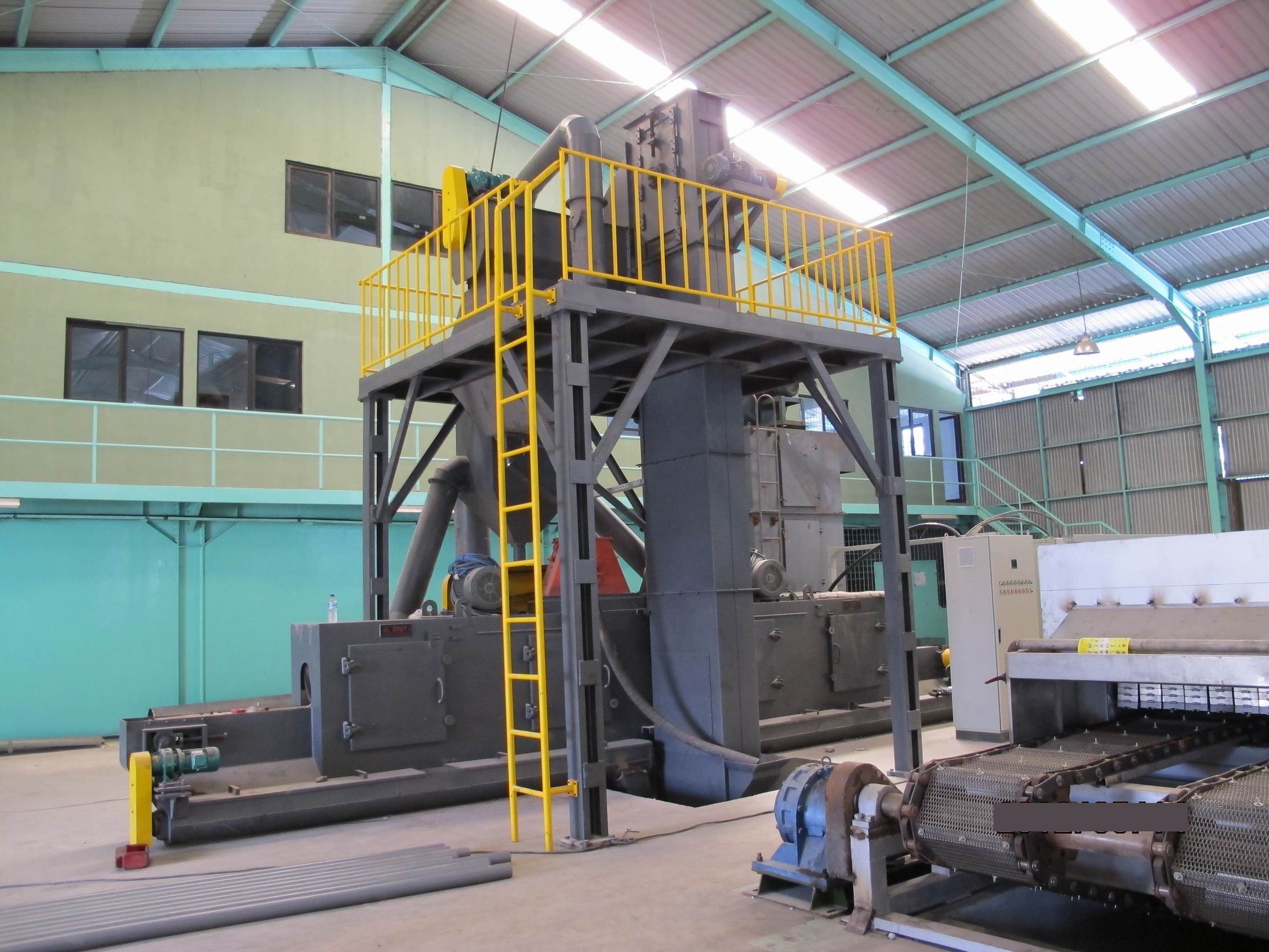

Free Shot Peening Machine
Free shot peening machine is used for shot peening on conventional springs.
Details
Main Technical Data for the main machine
|
1
|
Dimension of the line
|
9m(L)×1m(W)×7m(H)and1.4m underground ( dimension does not include dust collector which will be located outside of the plant)
|
|
2
|

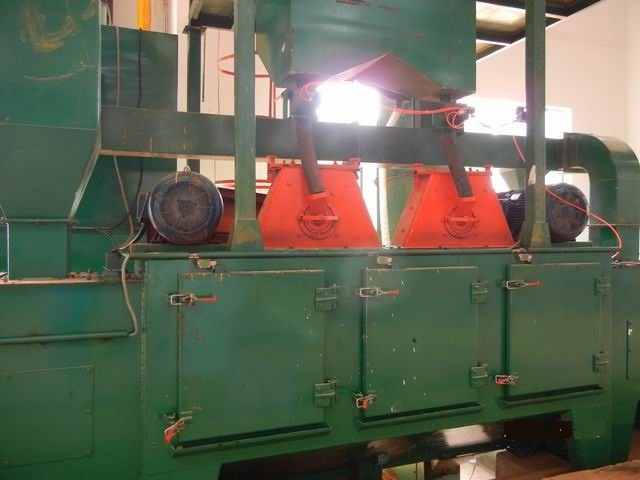

Number of impellers
|
2 impellers ( type:180-4RK)30KW*2=60KW
|
|
3
|
Motor for screw, conveyer and lifter
|
around 17kw
|
|
4
|
Shot peening quantity
|
400kg/min*2
|
|
5
|
Shot size
|
∮1.0---1.2mm（casting iron ball）HRc≥50
|
|
6
|
Intensity
|
0.18 Almen C (Speed≤4m/min)
|
|
7
|
Coverage on up side
|
≥98%
|
|
8
|
Width of conveyer
|
260mm
|
|
9
|
Effective width of conveyer
|
240mm
|
|
10
|
Type of conveyer inside tunnel
|
chain covered with plate+ chain style
|
|
11
|
Liner inside the panel
|
Mn13 steel with 10mm thickness, fixed on the chamber with screw and laid overlapping designed easy to change)
|
|
12
|
Speed of conveyer
|
1~7m/Min (adjustable)
|
|
13
|
Operating height
|
800mm or decide by the user
|
|
14
|
Total Motor Power
|
around 80kw
|

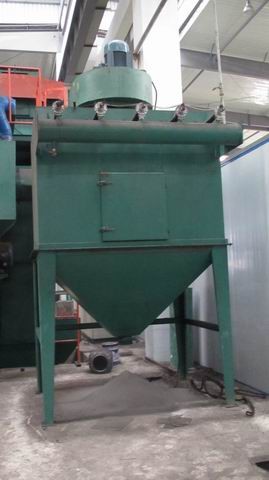

Main Technical Data for the dust collector
|
1
|
Material of filtering component
|
Anti-static polyester fibre needle felt
|
|
2
|
Numbers of filtering component
|
42 pieces
|
|
3
|
Mode of dust cleaning
|
Online high pressure dust cleaning
|
|
4
|
Air flow
|
around 14000m3/h
|
|
5
|
Filtering area
|
around 190m2
|
|
6
|
Efficiency of dust cleaning(%)
|
99%
|
|
7
|
Screw conveyer
|
LS200power 2.2kw*4p
|
|
8
|
Over dimension(mm)
|
1990*1280*3900
|
|
9
|
Weight
|
About 4000kg
|
