Semi Automatic Eye Forming Machine

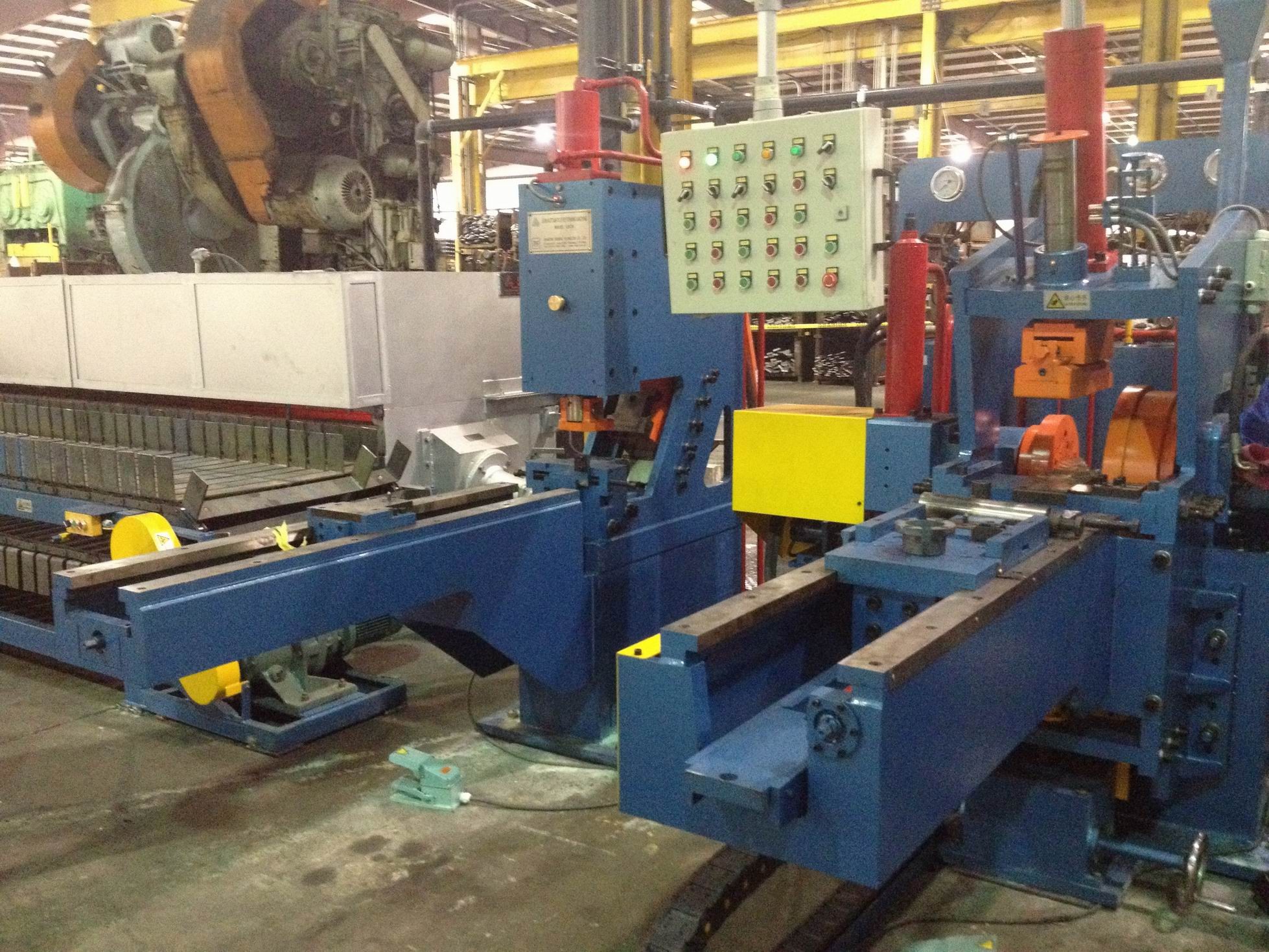

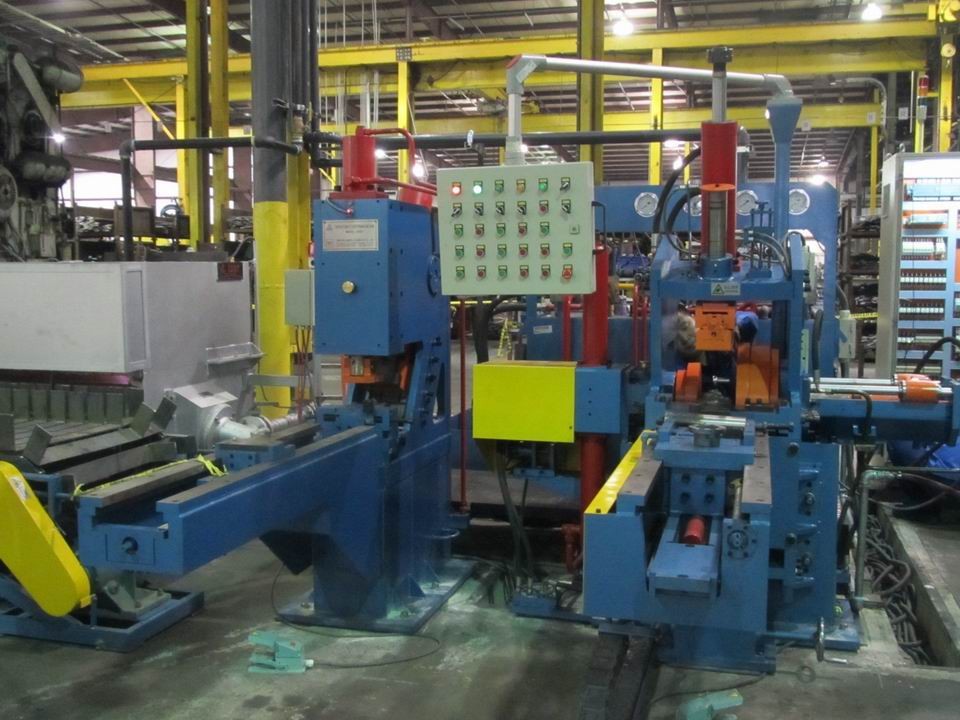

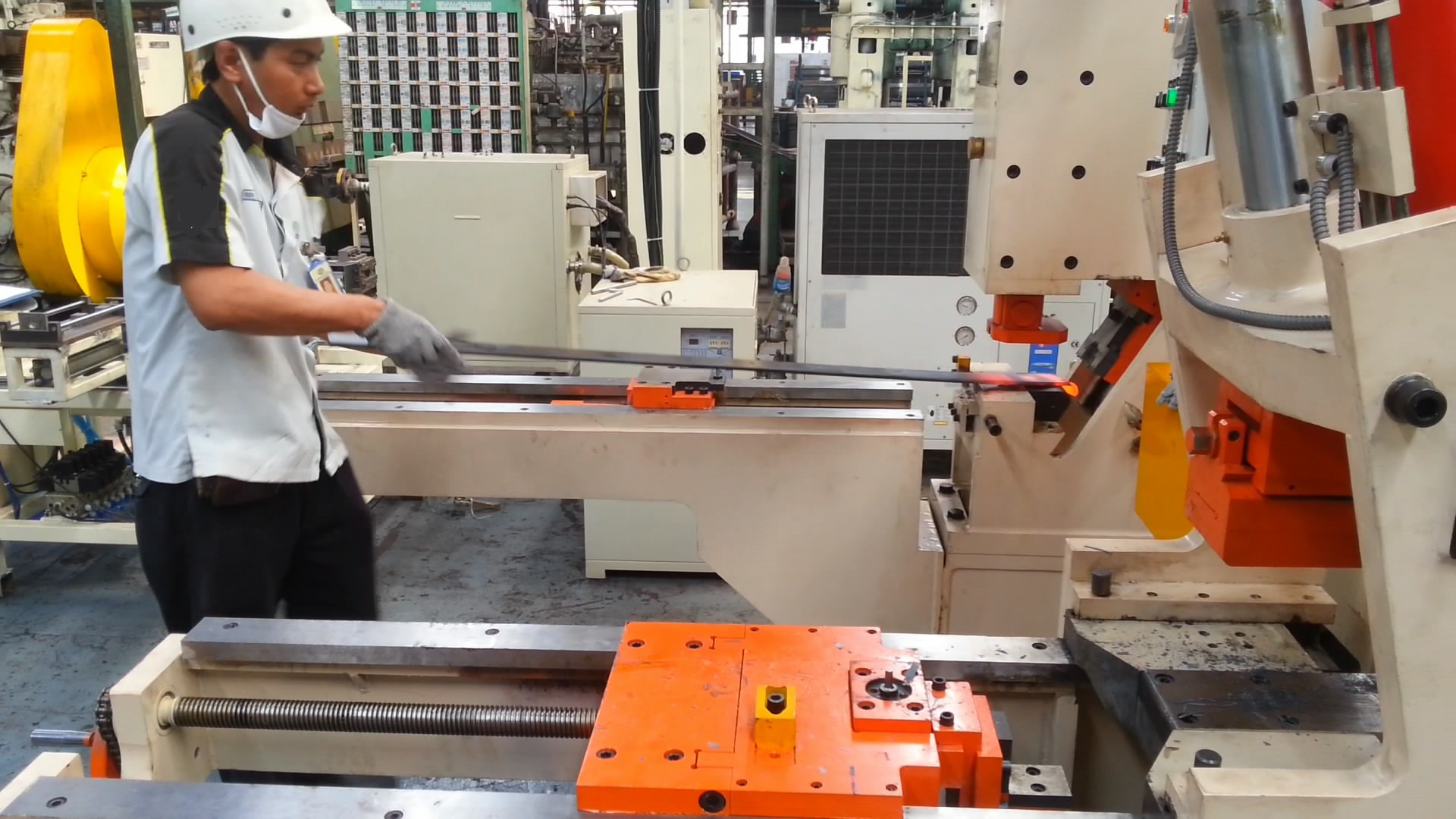

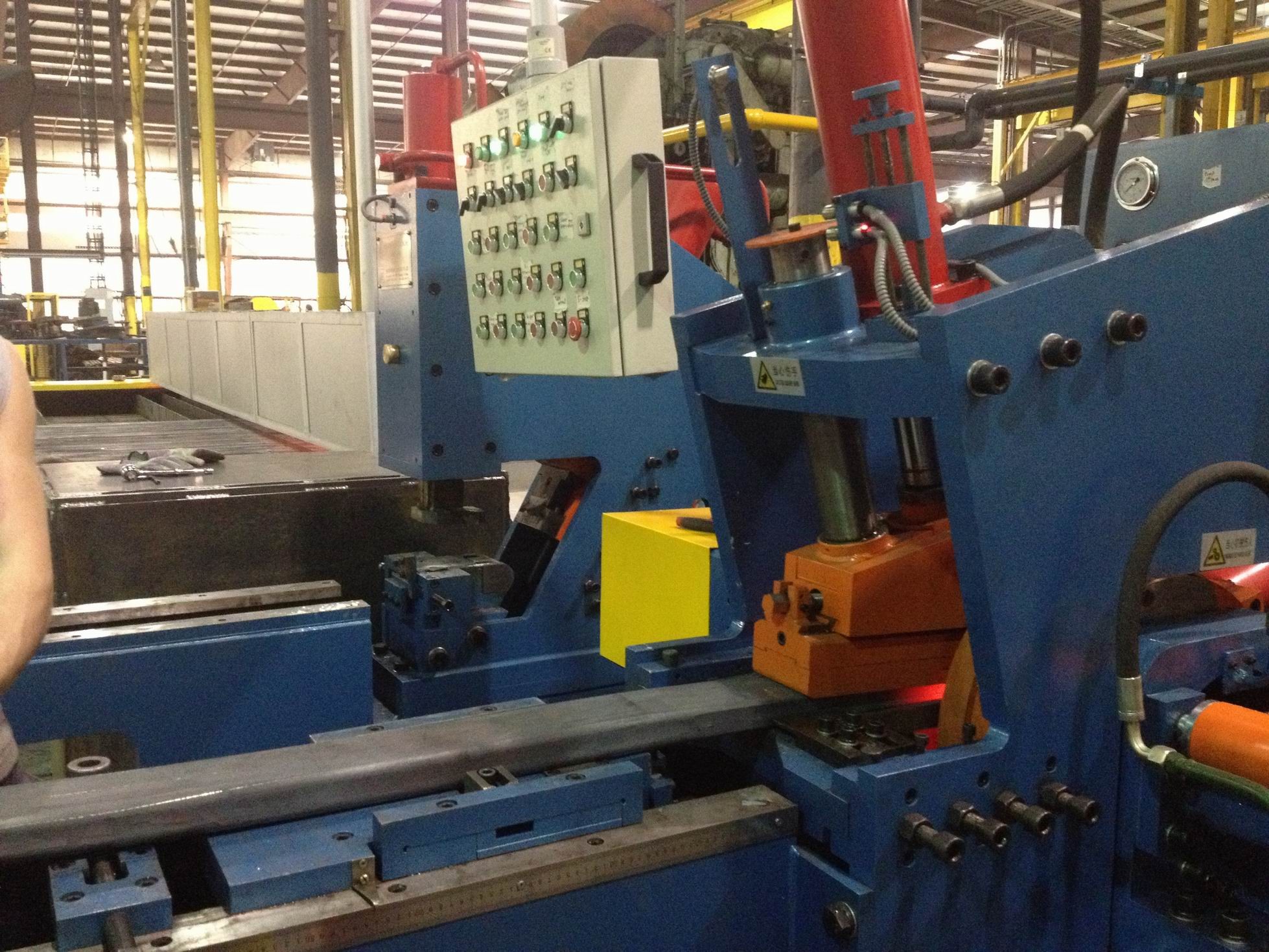

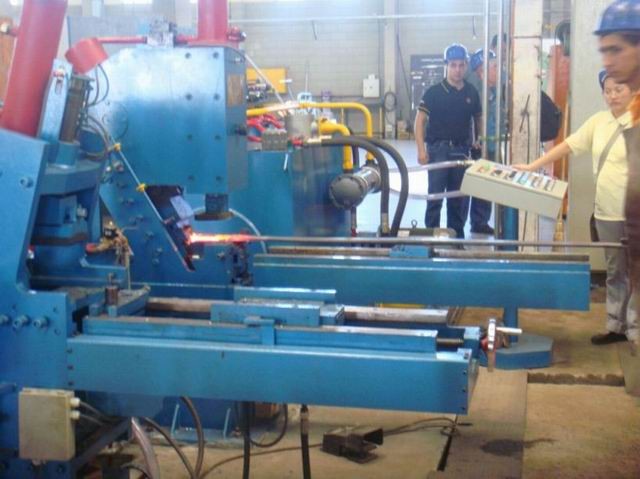

Semi-Automatic eye forming machine is used for eye forming for thickness up to 25mm, and we have 3 types: ER2, ER2F and ER3F.
Details
Main parameter for eye forming machine
|
Technical diameter
|
ER2
|
ER2F
|
ER3F
|
|
Thickness of steel bar
|
6-25mm
|
6-25mm
|
6-25mm
|
|
Width of steel bar
|
44-120mm
|
44-120mm
|
40-120mm
|
|
Min inner diameter of eye
|
20mm
|
20mm
|
20mm
|
|
Max inner diameter of eye
|
∮70mm
(wrapper:∮95mm)
|
∮75mm
(wrapper:∮130mm)
|
∮130mm
(wrapper:∮150mm)
|
|
Length between two eyes
|
940-2000mm
|
660-2100mm
|
660-2100mm
|
|
Parallelism of eyes
|
≤ 1%
|
≤ 1%
|
≤ 1%
|
|
Perpendicularity of eye
|
≤ 1%
|
≤ 1%
|
≤ 1%
|
|
Allowance of inner diameter of eye
(D/T＞2, D: inner diameter of eye
T: Thickness of leaf)
|
≤ 0.3mm
|
≤ 0.3mm
|
≤ 0.3mm
|
|
Productivity
|
≥4 eyes/min
|
≥4 eyes/min
|
≥4 eyes/min
|
|

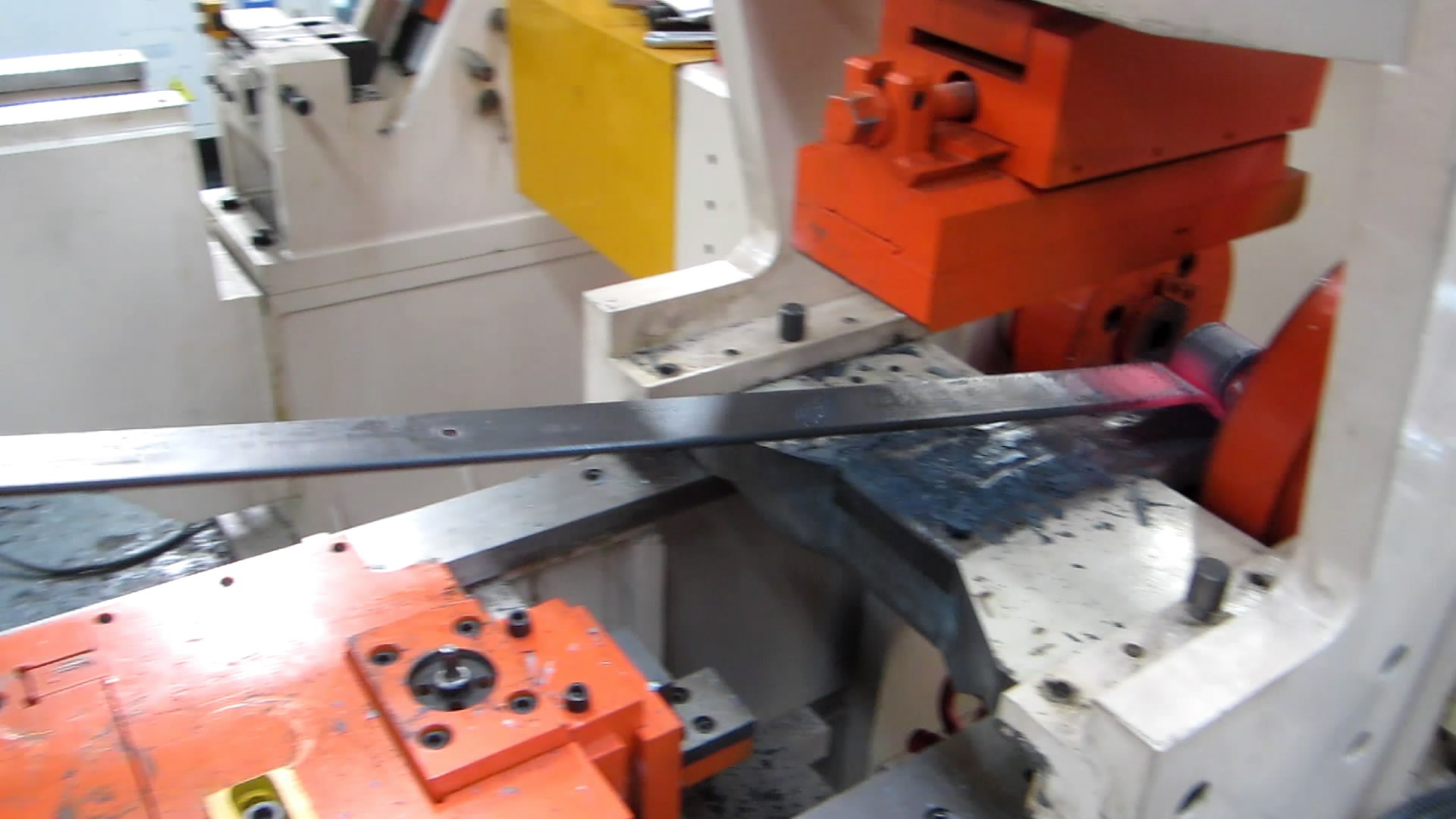

Type of the eye：
|
round eye, 1/4 eye, 3/4 eye, hook (bending)
|
wrapped eye: fully wrapped, Berlin type wrapped
rolled eye: up rolled, middle rolled
|
|

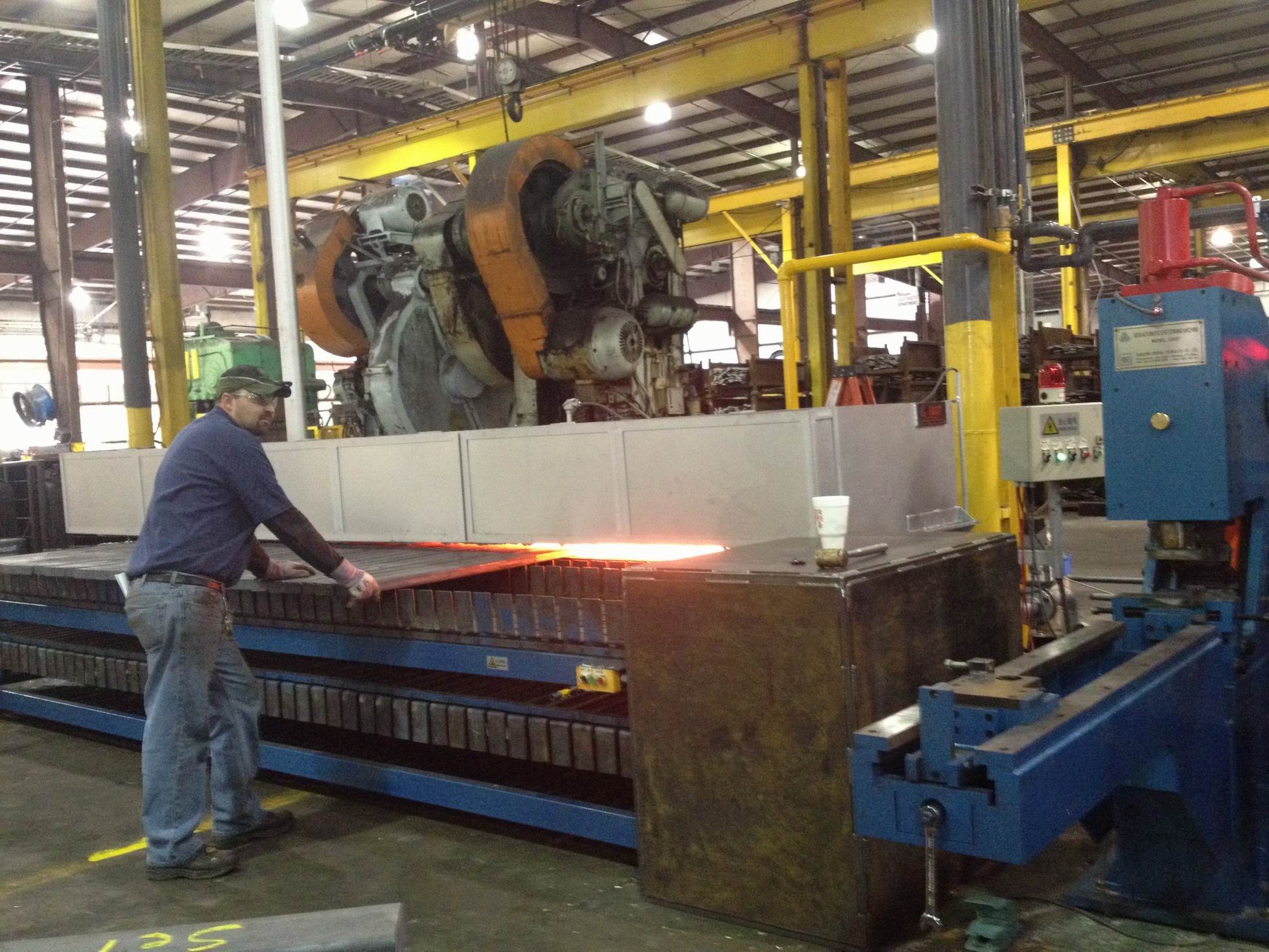

Main parameters for end heating furnace (could be customized)
|
Chamber size (mm):
|
5000 ×350 ×300mm (L×W×H)
|
|
Contour size (mm)
|
5440 ×1070 ×1410mm (L×W×H)
|
|
Conveyer size (mm):
|
6000x1000x850(L×W×H)
|
|
Convey direction
|
operate from left to right
|
|
Fuel:
|
Natural gas or LPG
|
|
Working temperature:
|
≤1100℃
|
|
Conveyer inside the furnace with material of Stainless steel (Cr25Ni20)
Other parts of conveyer are with normal leaf spring steel.
|
|
|
Accuracy of temperature ±10℃, automatic temperature control.
|
|
|
Efficiency:
|
two burners
≤ 7.5 Sec/end (two burners) for heating section of 15T×90W×150Lmm
|
