  • Measuring Machine

Measuring devices for thickness and eye distance

Details

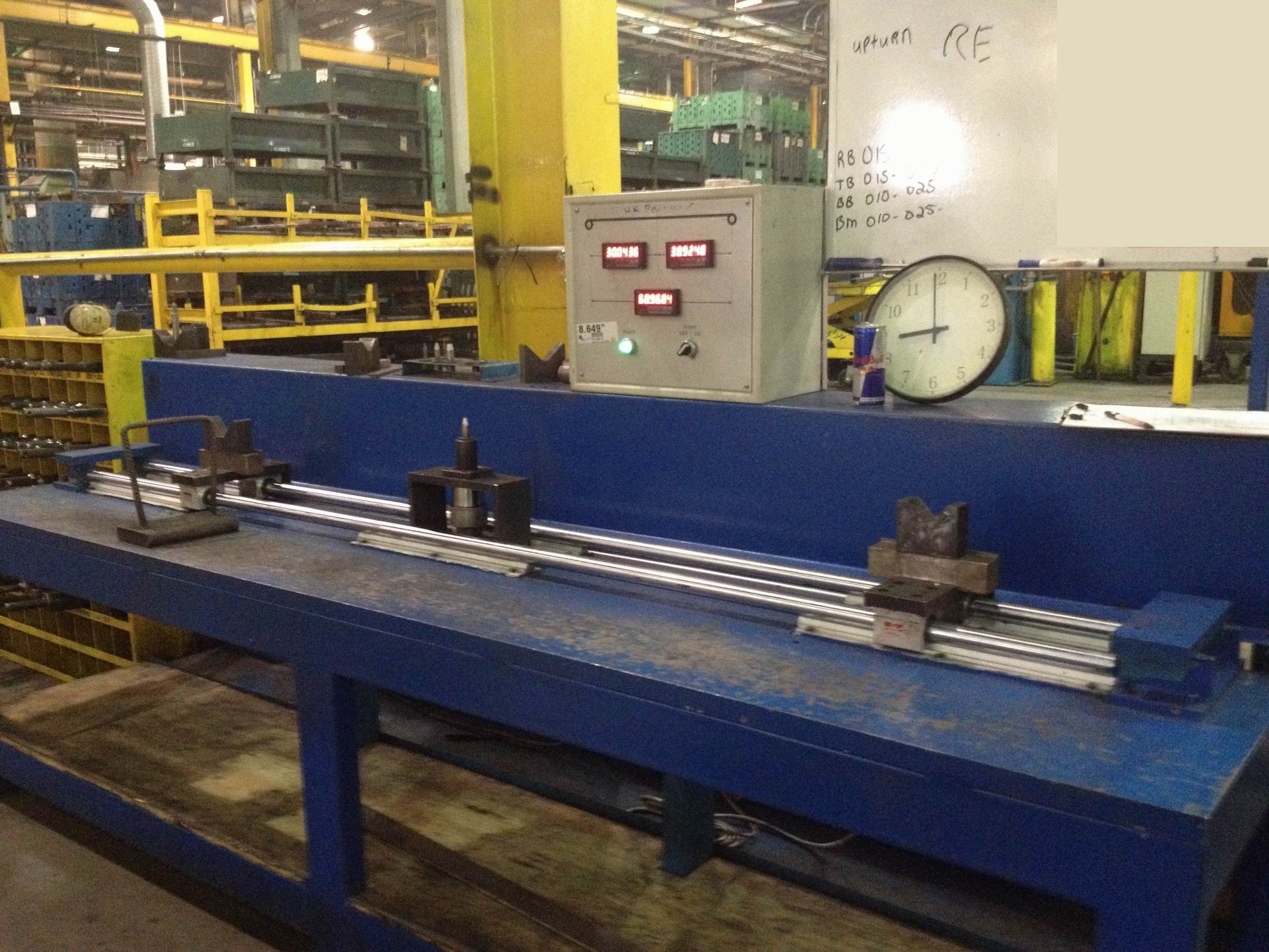

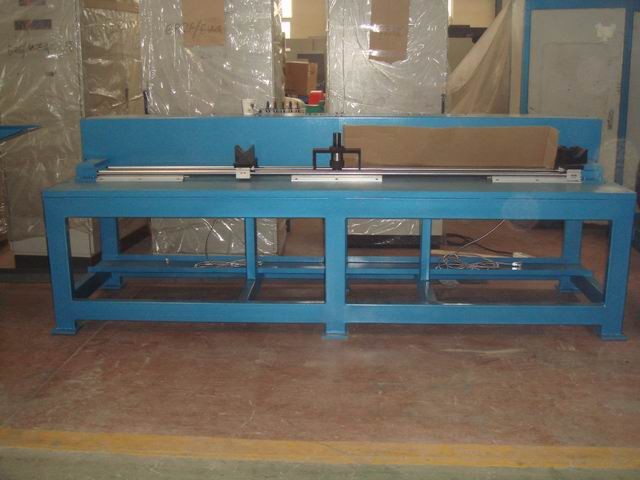

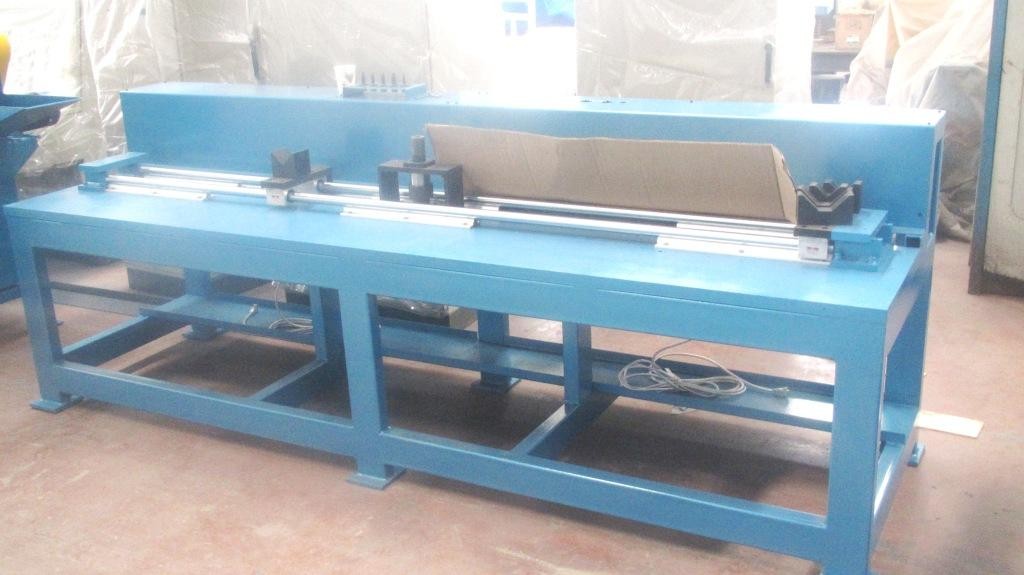

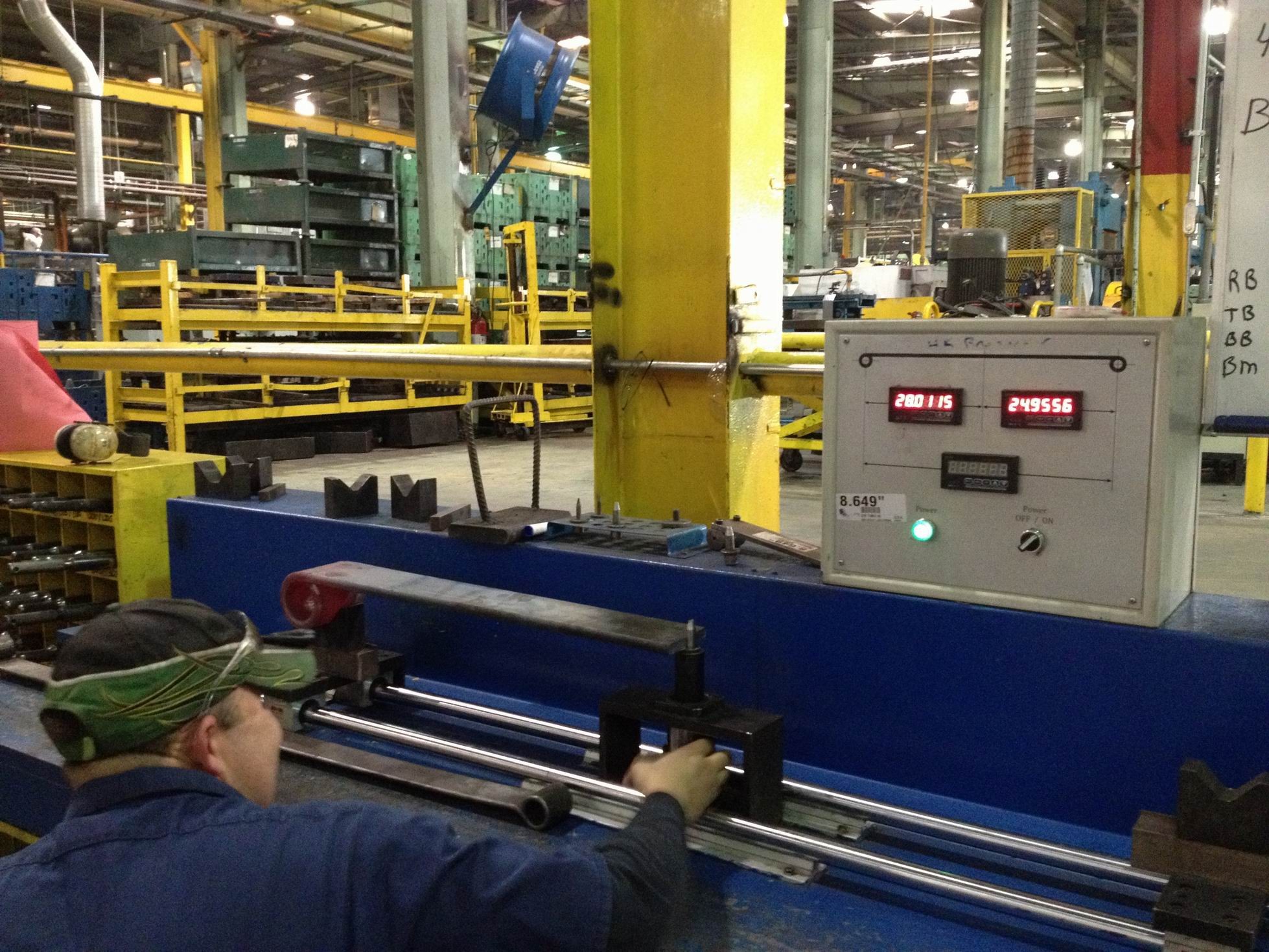

 Eye distance measuring device

Main technical parameter
1
Measuring precision
±0.1mm
2
Min. center distance between two eyes: 500mm
(half length: 250mm)
Min. center distance between two eyes:2400mm
(half length:1200mm)
3
Measuring mode

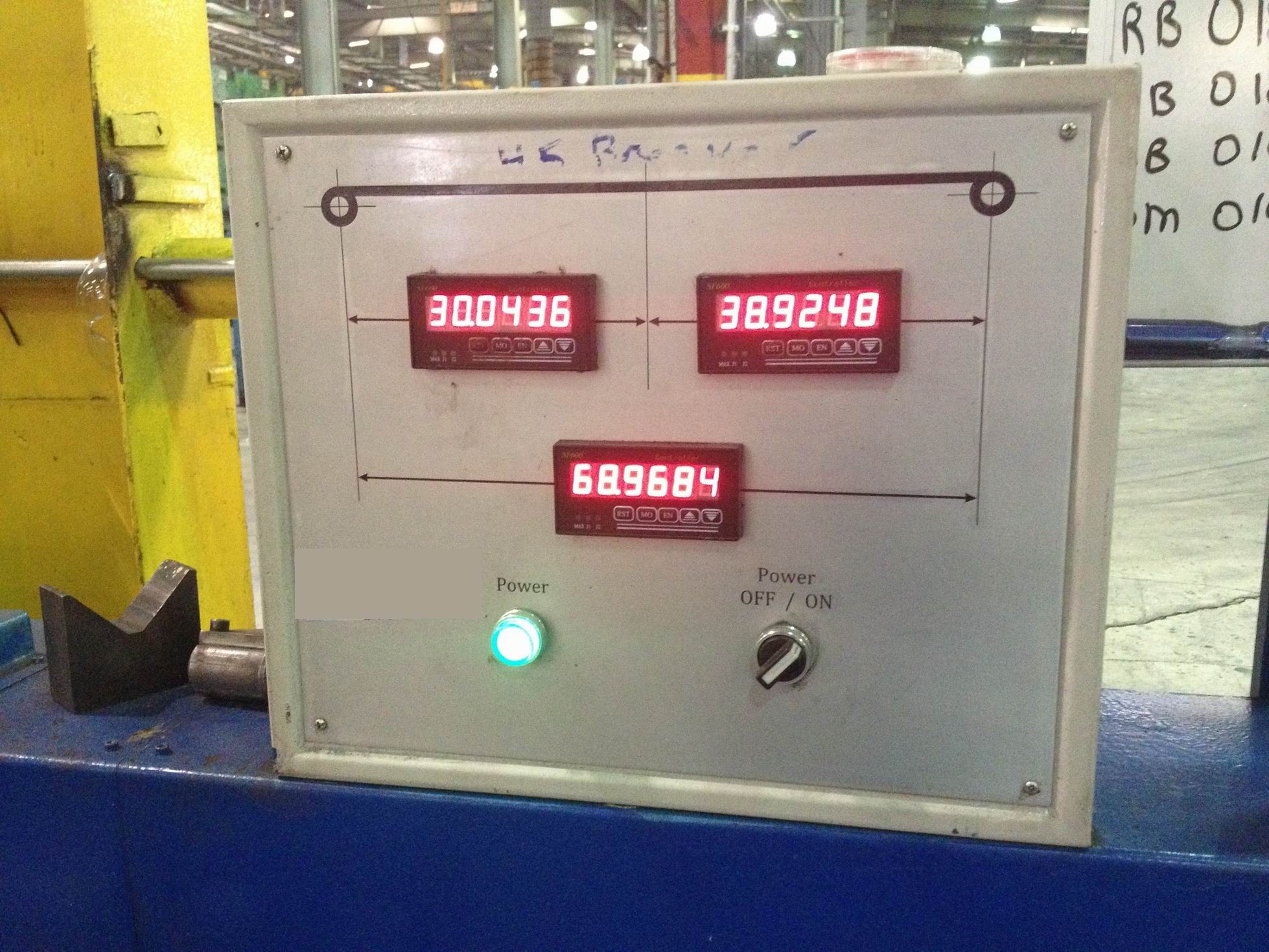

Grating ruler+ digital indicator

Thickness measuring device
Main technical parameter
1
Measuring precision
Length: ±0.1mm
Thickness : ±0.02mm
2
Measuring range
Max. measuring length(half length): 1400mm
Max. measuring thickness: 60mm
3
Adopt IPC to record the measuring data,
1.      Compared with the theory data to get machining error.
2.      The error could be displayed by curve.
3.      The error on pointed length could be output.
4.      The measuring data could be saved.
